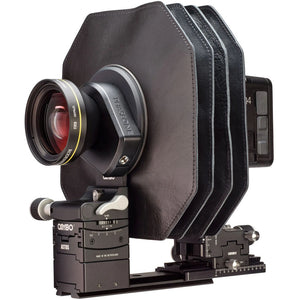

Cambo ACTUS-G View Camera for XF/M645 Digital Backs ( Rotating )
This configuration of the Cambo Actus-G comes with the Cambo Actus Rotating Digital Back Mount - ACDB-990 (for Phase One) and the Cambo Actus-DB 150mm Standard Bellows - ACDB-250.
The front standard is slightly higher than the Actus-G's. Necessary to align lens and sensor when using a Digital Back. To use it with Mirrorless or DSLR cameras we recommend the higher bayonet holders from the Actus-MV view camera.
The Actus-G990D/G991D is the preferred choice if you need a compact view camera that accepts every sensor format, including Digital Backs. For those who need the same functionality but have no intention to add a Digital Back to their kit, we recommend the regular Actus-G. The latter is slightly lower.
Technical Details
Dimensions LxWxH | 152 x 115 x 180 mm |
---|---|
Weight | 1160 grams |
Front Swing | 360° |
Front Tilt | 19° (+10°/-9°) |
Rear Shift Vertical | 27mm (12/15) |
Rear Shift Horizontal | 40 mm (20/20) |
Focus Travel | up to 134mm (-GFX-sensor) |
Color | Black anodized |
